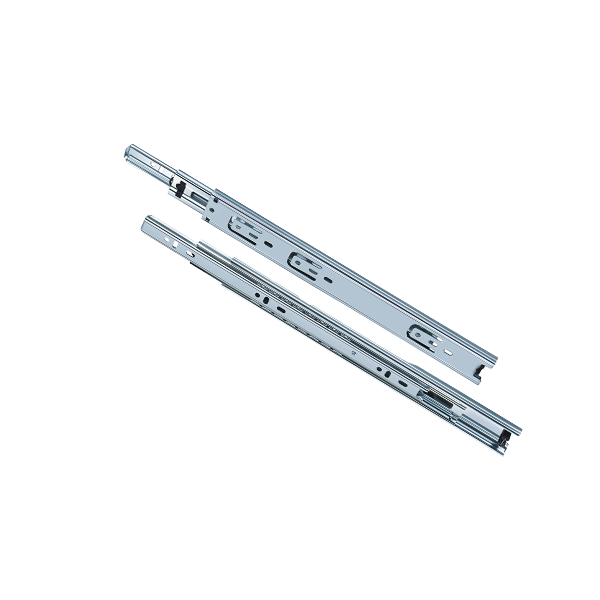

FVS-003 40mm 3-fold ball bearing drawer slide

Size

10"-24"

Finish

Blue zinc-plated, color zinc-plated, black-plated. with anti-rust sealer

Recommended applications

Mid-duty movable cabinet, desk drawer, ordinaty funiture, or any applications requiring 25kg load or less and requiring full extension.

Product features

Fine adjustment of gap is possible when installing; quick separation mechanism; vibration prevention ball strip for absorbing impulsive force, and mechanism to prevent drawer from spring out.

Installation method

Side mounting. 12.6±0.2mm

3-Fold Ball Bearing Slide

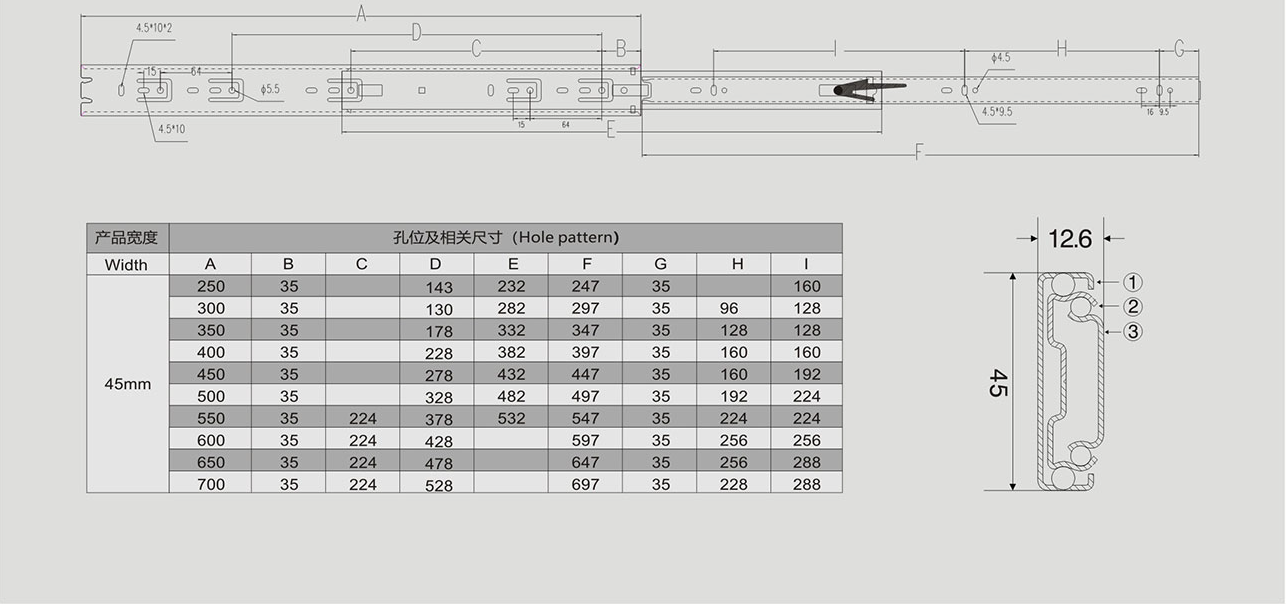

Illustration

Mounting Instructions

Press release lever and pulling drawer box forward to disconnect the drawer member

Mounting Instructions

Press release lever and pulling drawer box forward to disconnect the drawer member

Mounting Instructions

Press release lever and pulling drawer box forward to disconnect the drawer member

Mounting Instructions

Press release lever and pulling drawer box forward to disconnect the drawer member
