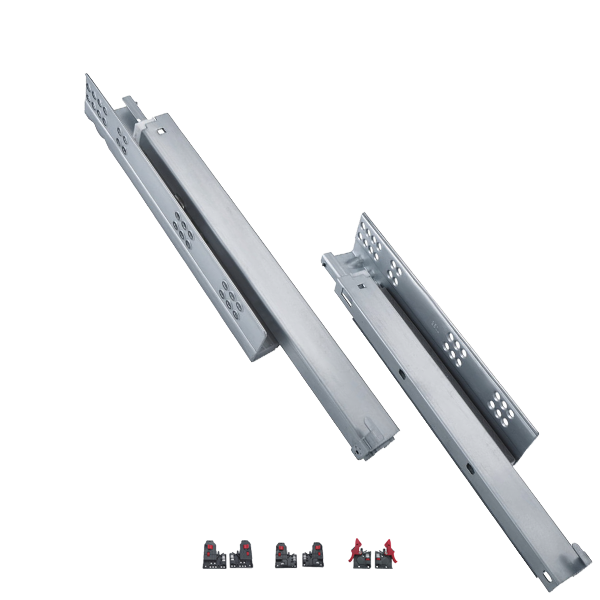

FVS-011 partial extension concealed slide
Spec
Tool-free quick installation drawer height adjustable by 1-3mm
Loading capacity
25kg
Size
250-550mm
Material
Galvanized steel
3-Fold Ball Bearing Slide

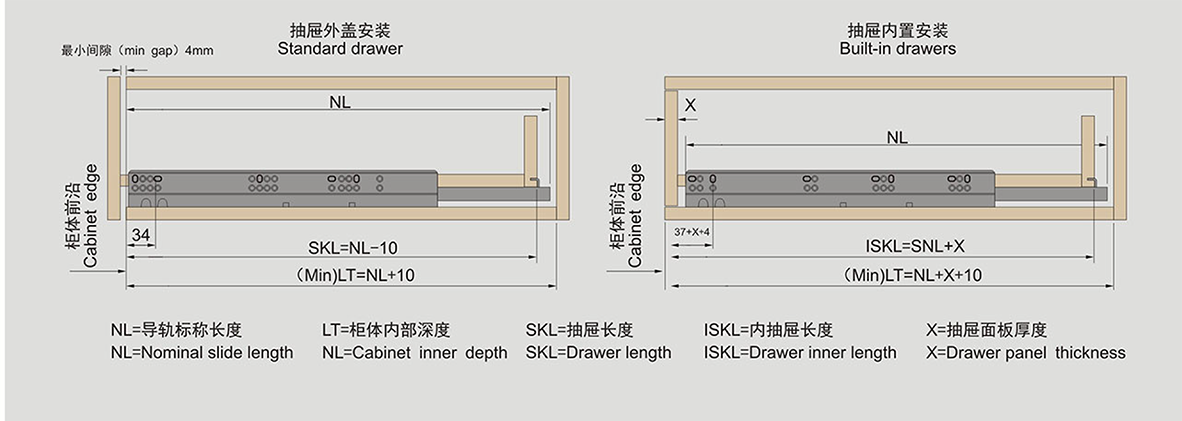

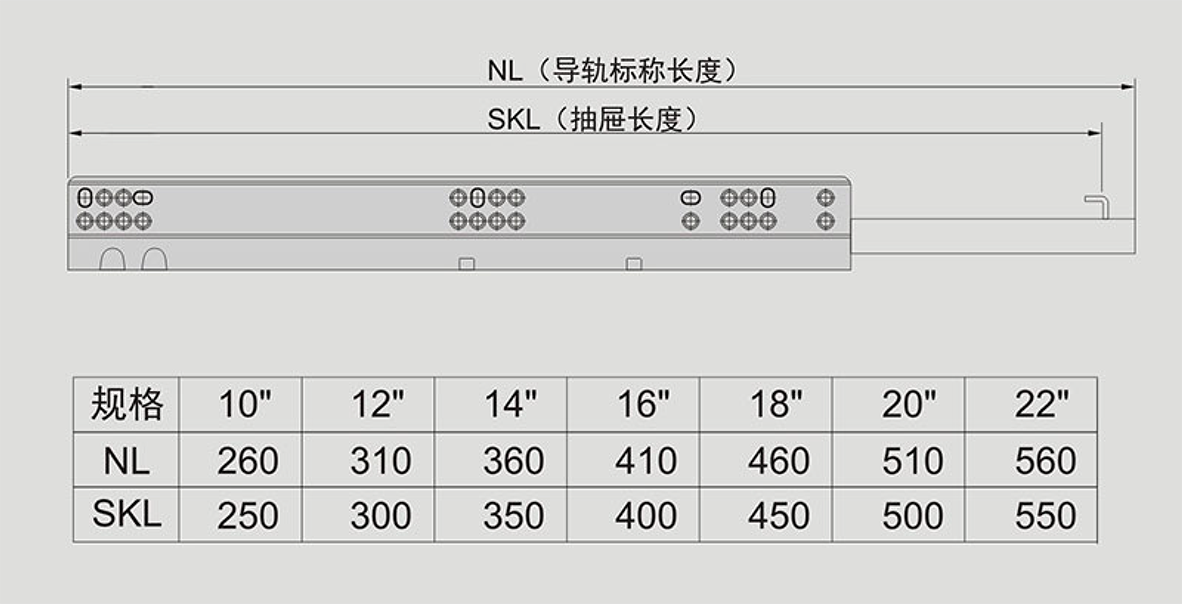

Illustration

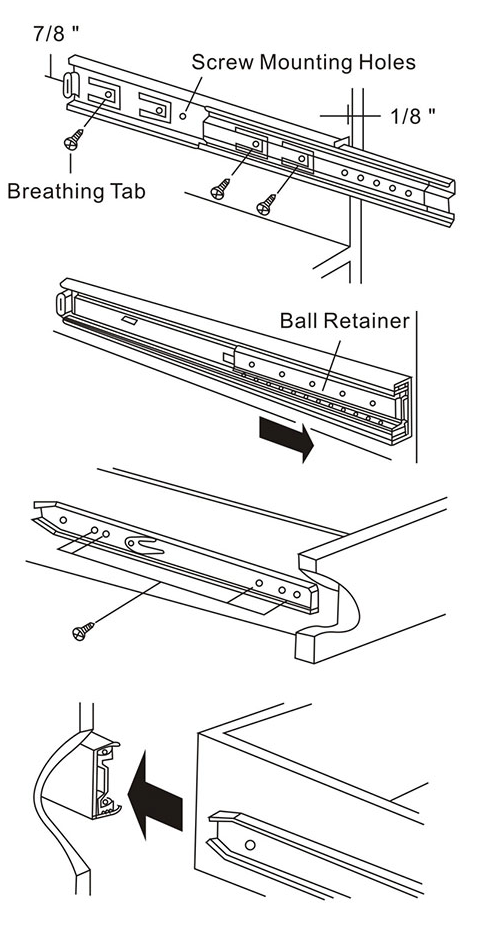

Mounting Instructions
Press release lever and pulling drawer box forward to disconnect the drawer member
Mounting Instructions
Press release lever and pulling drawer box forward to disconnect the drawer member
Mounting Instructions
Press release lever and pulling drawer box forward to disconnect the drawer member
Mounting Instructions
Press release lever and pulling drawer box forward to disconnect the drawer member
Explore more product

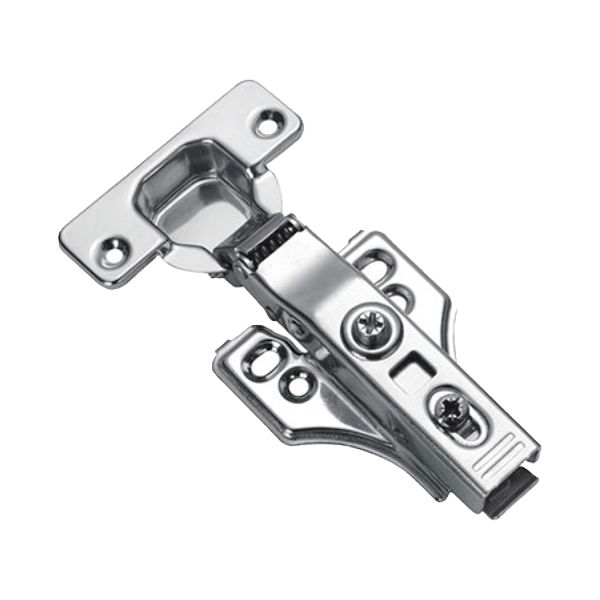

FVH-032A Fly hydraulic hinge(clip on)

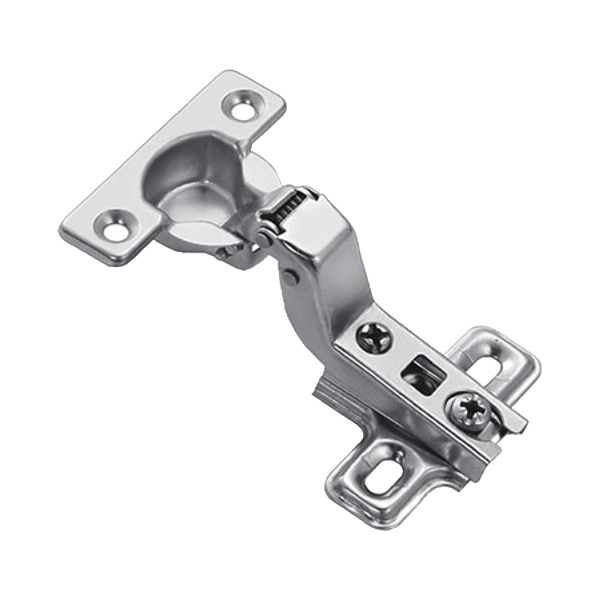

FVH-031C 26mm one way hinge(slide on)

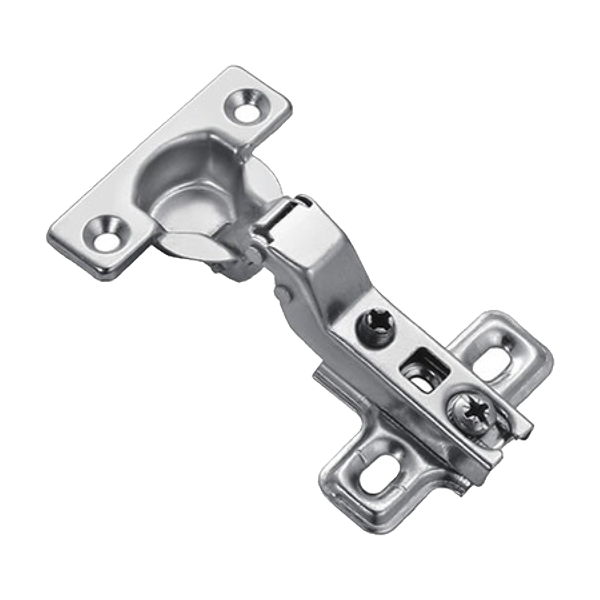

FVH-031B 26mm one way hinge(slide on)

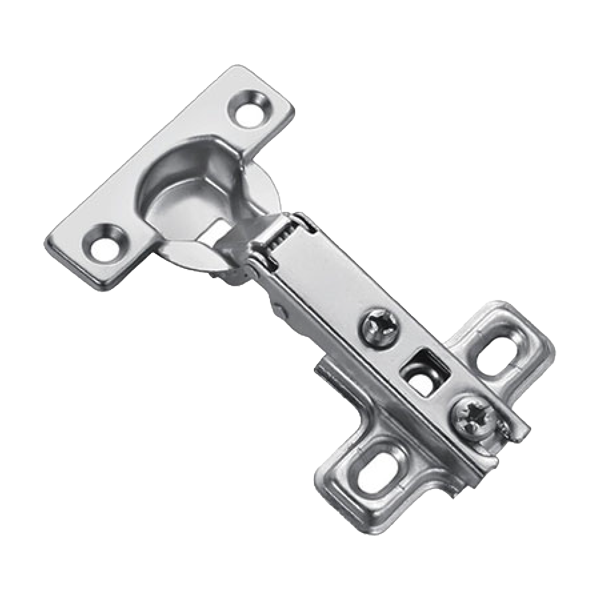

FVH-031A 26mm one way hinge(slide on)

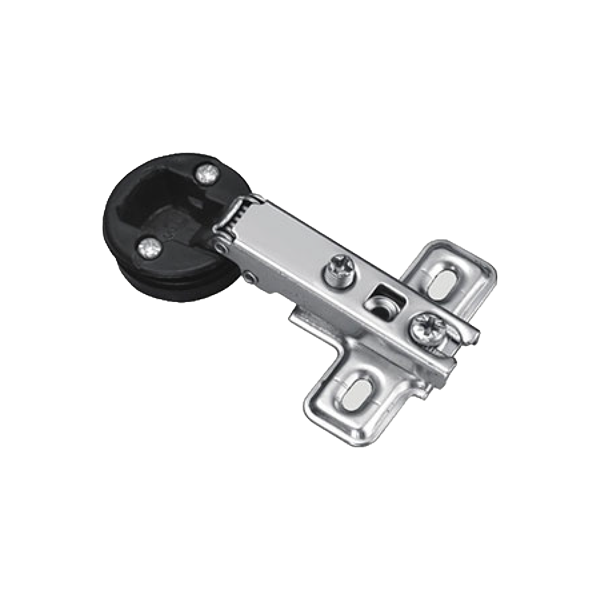

FVH-030 26mm glass hinge(slide on)

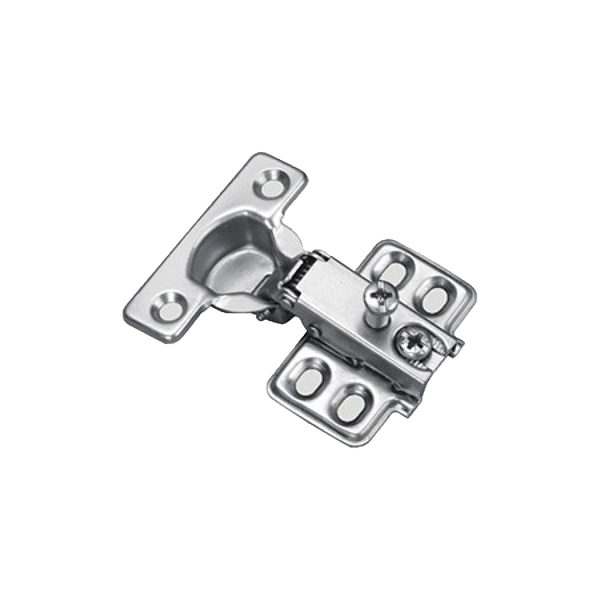

FVH-029 26mm short arm hinge(slide on)

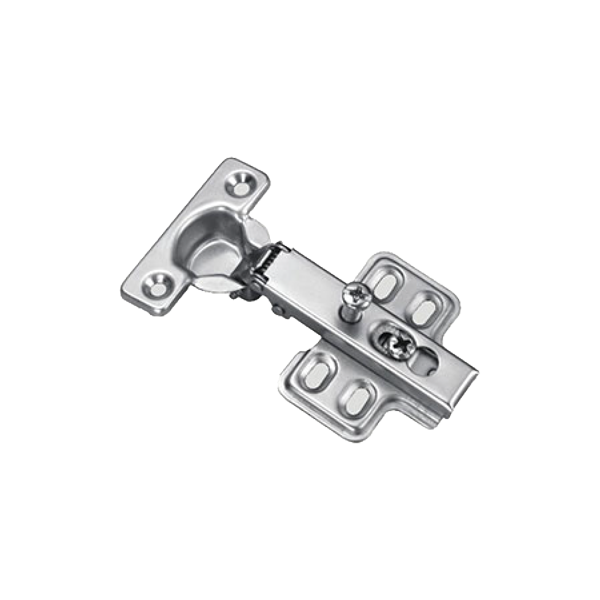

FVH-028 26mm cup one way hinge(slide on)

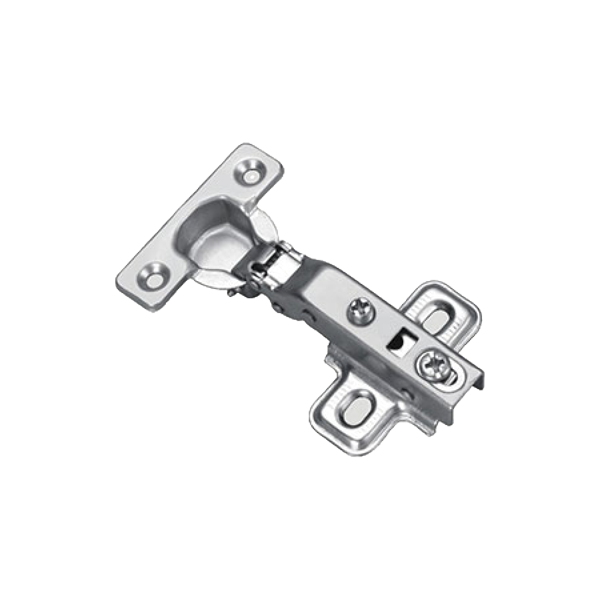

FVH-027 26mm cup hydraulic hinge(slide on)

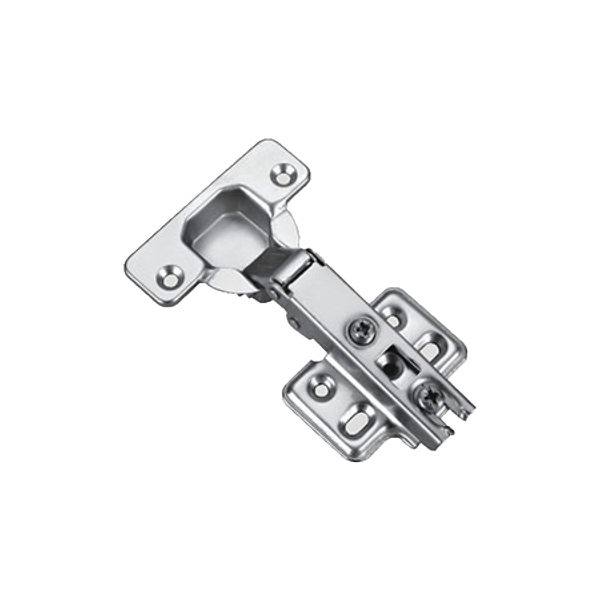

FVH-026 Free spring hinge Free spring hinge

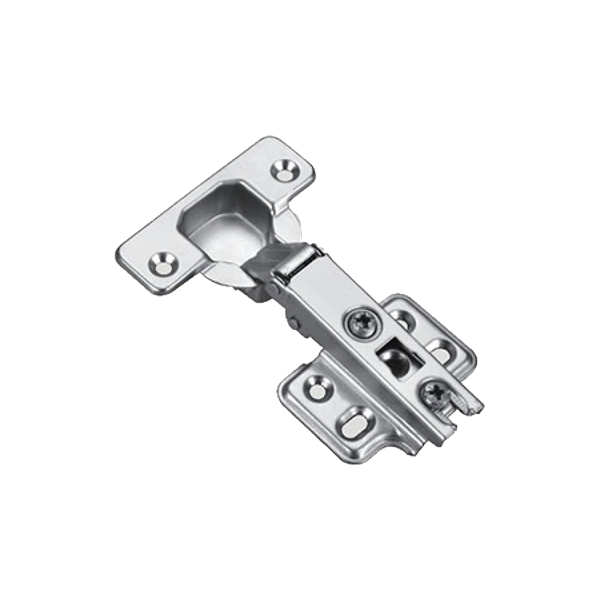

FVH-025 Simple push open hinge Simple
